Key features:
M45B – SCBA Drying Cabinet
The M45B drying cabinet is the upgraded version of the M45. Both dryers are made to dry up to 45 breathing mask / facepieces per batch. In addition, the M45B is also equipped for drying up to 6 SCBAs.
Simply place the wet equipment inside, and let the drying cabinet do its work. Sensors inside the cabinet detect when the PPE is dry and shuts off automatically.
In addition, other small PPE items can also be cleaned inside the M45B. Simply choose the right basket and place it inside the dryer.
Can dry
Cannot dry
Before drying
To disinfect and clean both SCBA and small PPE, we recommend using the Wash 6HP.
Position in product range

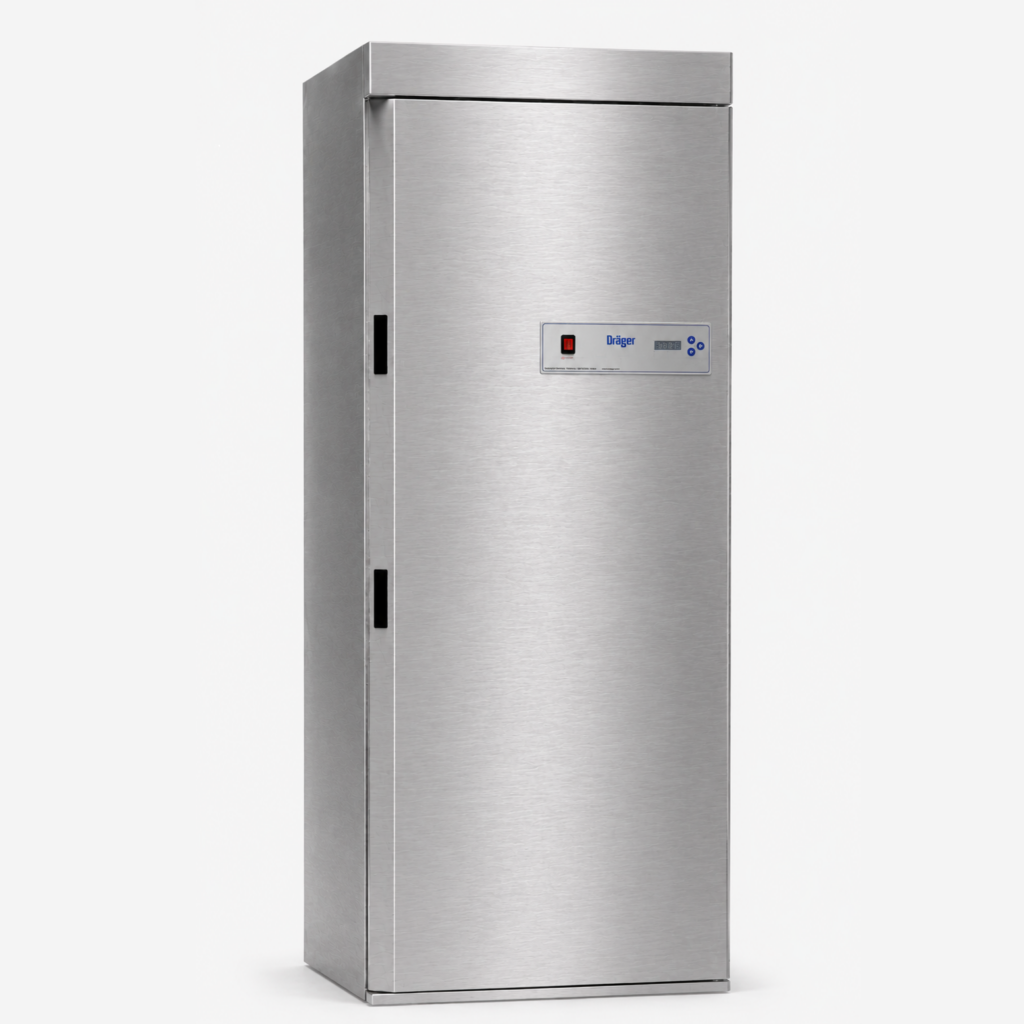

The M45B is made for drying both SCBAs and small PPE . Protective clothing cannot be dried in this machine. Instead, check out one of our K-series dryers, such as the K10.
When in need of an even larger capacity PPE drying cabinet, check out our flagship F12.
| Dimensions | height x width x depth in mm |
| External | 1680 x 602 x 600 |
| Internal | 1400 x 542 x 500 |
| Content | 380 liter |
| Net weigh | 100 kg. |
| External | Stainless steel |
| Internal | Stainless steel |
| Doors | 1 Piece |
| Door sealing | magnetic strip |
| Drip tray | polished stainless steel |
| Adjustable legs | 4 pieces., adjustable for stability and spirit level |
| Insulation | glass wool, min. 30 mm thick |
| Temperature range | up to 58˚C. set at 52˚C. by manufacturer |
| Second temperature | self-adjustable |
| Temperature reading | digital LED reading |
| Expiring time clock | digital LED reading, set between 1 minute and 99:58 hours |
| Electronic temperature control | 2 pieces PTC sensors, solid state relay |
| Electronic moisture measure | capacitive sensor |
| Temperature safeguard | extra thermostat (max. 62˚C.) |
| Heating | direct heating, approx. 2 kW |
| Air circulation | by means of 1 low-noise ventilator |
| Air refreshment | by air outlet on top of the cabinet, PVC tube of Ø 32 mm |
| Air inlet | at bottom of the cabinet through a filter |
| Filter | Class F5, EN 779 |
| Capacity | 5 pieces wire baskets, stainless steel and removable; 2 hang-up frames |
| Standard wire baskets | max. 9 masks/ face pieces, total 45 pieces |
| Hang-up frames | 2x 5 SCBA’s |
| Drying time | approx. 2 hours, depending on the number of masks and amount of moisture |
| Mains connection | 230 Volt AC, N + PE, 50-60 Hz. |
| Power | approx. 2,1 kW, secured 1 x 16 Ampere |
| Electricity consumption | average 0,4 kWh |
Compare models to find the best fit for your station
