Key features:
M18 – Breathing mask / face piece dryer
The M18 is a compact PPE drying cabinet. It’s main use case is the drying of up to 18 masks / face pieces. Simply place the wet equipment inside, and let the drying cabinet do its work. Sensors inside the cabinet detect when the masks are dry and shuts off automatically.
In addition, other small PPE items can also be cleaned inside the M18. Simply choose the right basket and place it inside the dryer.
Can dry
Cannot dry
Before drying
To disinfect and clean small PPE items, we recommend using either the Wash 9 (fits 9 masks) or the wash 36 (fits 36 masks). For other cleaning needs, we recommend taking a look at our complete washing lineup.
Position in product range

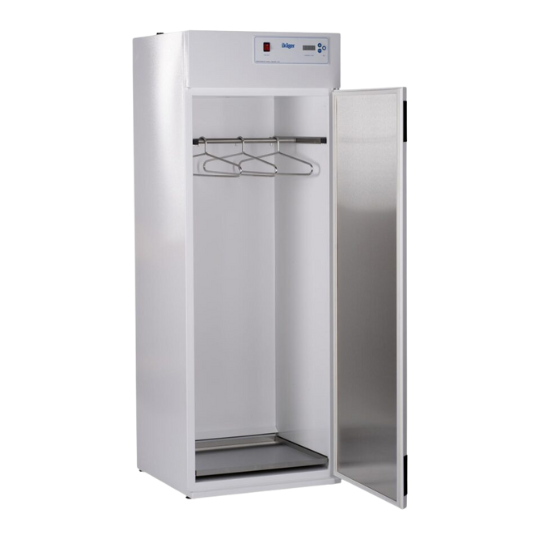

The M18 is our most compact dryer. If your station has greater breathing mask drying needs, check out the M45, which can dry up to 45 masks per batch. For drying SCBAs, we recommend using the M45B, which can fit either 45 masks or up to 6 SCBAs. For the drying of protective clothing, check out one of our K dryers, such as the K3.
When in need of large capacity versatile PPE drying cabinet, check out our flagship F12 drying cabinet.
| Dimensions | height x width x depth in mm |
| External | 960 x 602 x 604 |
| Internal | 680 x 542 x 500 |
| Content | 185 liter |
| Net weigh | 80 kg. |
| External | Metalco steel, electrolytically galvanized |
| Coating | Powder coating, RAL9016 |
| Internal | Metalco steel, electrolytically galvanized |
| Doors | one, internal polished stainless steel |
| Door sealing | magnetic strip |
| Drip tray | polished stainless steel |
| Adjustable legs | 4 pieces, adjustable for stability and spirit level |
| Insulation | glass wool, min. 30 mm thick |
| Temperature range | up to 58˚C. set at 52˚C. by manufacturer |
| Second temperature | self-adjustable |
| Temperature reading | digital LED reading |
| Expiring time clock | digital LED reading, set between 1 minute and 99:58 hours |
| Electronic temperature control | 2 pieces PTC sensors, solid state relay |
| Electronic moisture measure | capacitive sensor |
| Temperature safeguard | extra thermostat (max. 62˚C.) |
| Heating | direct heating, approx. 2 kW |
| Air circulation | by means of 1 low-noise ventilator |
| Air refreshment | by air outlet on top of the cabinet, PVC tube of Ø 32 mm |
| Air inlet | at bottom of the cabinet through a filter |
| Filter | Class F5, EN 779 |
| Capacity | 2 removable stainless steel wire baskets |
| Standard wire baskets | max. 9 masks / face pieces, total 18 pieces |
| Drying time | approx. 2 hours, depending on the number of masks and amount of moisture |
| Mains connection | 230 Volt AC, N + PE, 50-60 Hz. |
| Power | approx. 2,1 kW, secured 1 x 16 Ampere |
| Electricity consumption | average 0,4 kWh |
Compare models to find the best fit for your station
