Harstra Wash6 HP washing machine open

Wash 6HP

SCBA cleaning machine

Key features:

Wash6HP – Pressurized SCBA Cleaning Machine

The Harstra Wash6HP is designed for the pressurized cleaning of SCBAs without breathing cylinders. This machine is equipped with six high-pressure connectors, allowing connection of up to six SCBAs per cleaning cycle.

Additionally, helmets and breathing masks/facepieces can also be cleaned in the Wash6HP. Helmets can be placed individually on the pull-out frame, while masks can be cleaned using the 12-pin mask frame.

Can clean

  • SCBAs without cylinder (under pressure, up to 6 per batch)
  • Helmets (placed individually on the pull-out frame)
  • Breathing masks/facepieces (using either a basket or the 12-pin mask frame)


Cannot clean

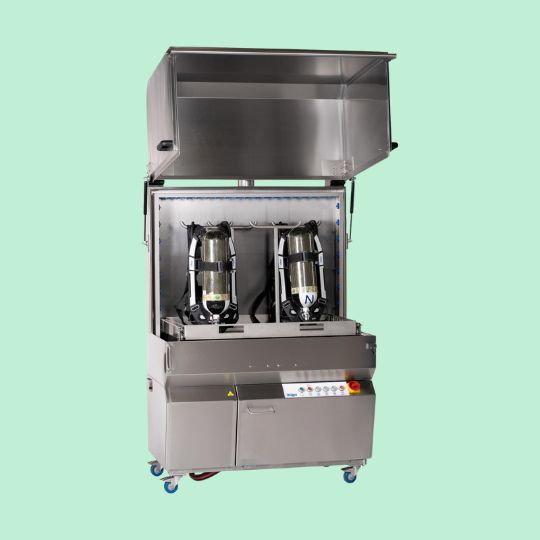

  • SCBAs with attached cylinders → see Wash4

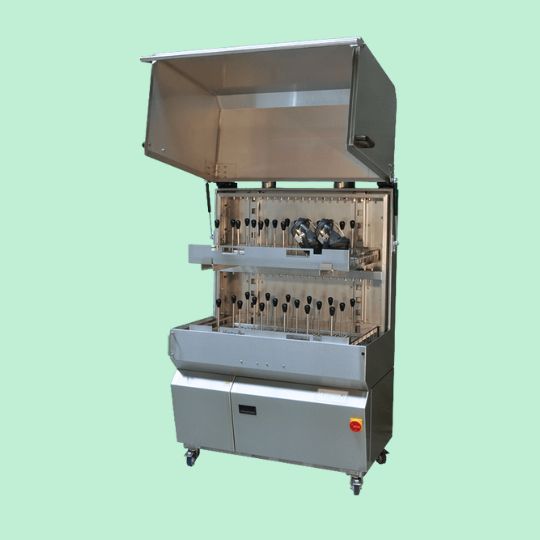

  • Large-volume mask loads → see Wash36
  • Clothing or footwear


After cleaning

After the cleaning cycle is complete, it is recommended to dry the SCBAs in a dedicated SCBA drying cabinet, such as the F12 or M45B, depending on your station’s drying needs.

Position in cleaning product range

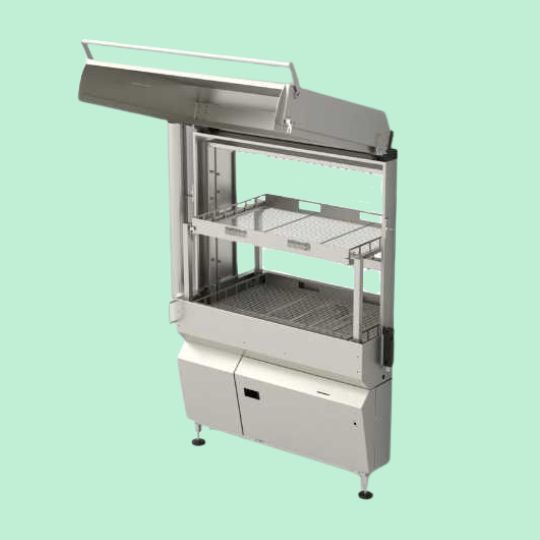

The Wash6HP is part of the High Pressure (HP) cleaning range. Other HP models include the Wash6HP Barrier and Wash9HP. The Wash6HP Barrier offers the same capacity as the Wash6HP, while the Wash9HP accommodates one SCBA per cycle. For cleaning SCBAs with cylinders still attached, choose the Wash4. For high-volume mask cleaning, consider the Wash36.

Included accessories

  • None


Optional accessories

  • AW6MHP: Two 12-pin mask frames can be placed inside the Wash6HP, allowing cleaning of up to 24 breathing masks/facepieces per batch
  • Baskets: For holding masks, helmets, or other PPE inside the Wash6HP (fits up to 4 A03 baskets)
Dimensionsheight x width x depth in mm
External 1800(2410*) x 1335 x 850(1445*)
*with open hood and extended drawer
Wash place 685 x 1030 x 610
Weight400 kg
External Materialgrinded stainless steel type 304
Internal Materialstainless steel type 304
Doors1 piece, vertical closing (front loader), with 2 handles and door Security/Emergency stop
Wheels4 castors (inhibited)
ControlSiemens PLC
Wash pump power3,0 kW
Wash pump capacity1100 liter/ per min. at 1,5 bar
Wash tank capacity90 liter
Heating (wash)9 kW
Wash cycle times5, 10 and 22 minutes
Wash temperatureadjustable to 55°C
Wash systemmoving wash frame with stainless steel nozzles on 4 sides
Cleansing dosageautomatic, adjustable
Power rinse pump370 Watt
Water rinse tank capacity20 liter
Heating (rinse)9 kW
Rinse timeadjustable (by factory)
Rinse water temperaturemax. 55°C
Rinse systemmoving rinse frame with stainless steel nozzles on 4 sides
Neutralization doseautomatic, adjustable
Drain pump80 Watt

Wash 6 HP diagrammatic overview

  1. Cabinet door
  2. Filter (inside washing area)
  3. Electrical cabinet/door
  4. Motor + wash tank compartment
  5. Cabinet door hinges and gas springs
  6. Control panel
  7. Main Switch
  8. Castors
